-| Tent Instruction | - Han - Yin Exim

Step 1

Locate the area where the tent is to be erected. Choose a spot that is level and flat free from sharp object.Remove the tent from carrybag and make sure all parts are accounted.



Step 2

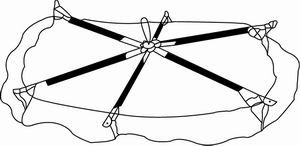

Place the tent in a vertical position with all poles pointing upward and spread out the rolled tentfabric. Untie the Velcro strap and release the poles free around the center hub like a star.

Step 3

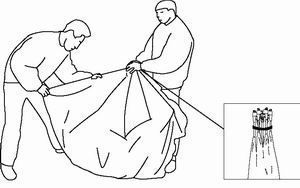

ERECT THE TENT Insta-set poles are pre- assembled to the tent as an integral part like an umbrella. Lifting the tent assembly with holding center hub, shake the tent gently to allow all 6 pole lines to hang down. Make sure the fabric of the tent isn’t caught between the center hub and connecting poles. (If fabric gets caught, lower the center hub until fabric is released. Do not try to tug or pull fabric free as damage to fabric is possible.)

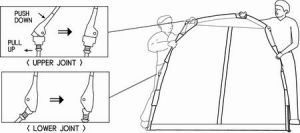

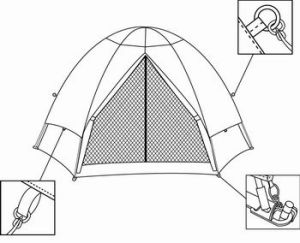

Start locking the first pole into position. While one person holds the tent assembly as high as possible, another grasps the pole approximately two inches above the upper joint with one hand and about one foot from the bottom of the upper joint with the other hand. Push down with top hand while pulling up with the other hand until the upper joint snaps. The lower joint is locked into position automatically when the upper joint is locked. After locking the first pole into position, repeat this step until the entire tent is set up.Drive stakes through stake loops into the ground.

Step 4

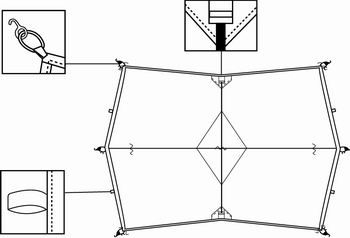

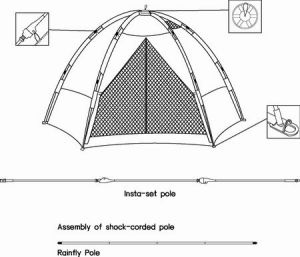

INSTALL THE RAINFLY Insert one end of the pole into the pole pocket. Gently flex the pole and place the opposite poleend into the other pole pocket. Secure the rainfly to the pole by tying the tie strings around the pole. Drape the rainfly over the tent roof, placing hood cut over the door. Hook “S” hooks into the D-rings of the plastic stake loops. Secure the rainfly to the tent by tying attached tie tapes. Tent may be guyed if a high wind is expected.
